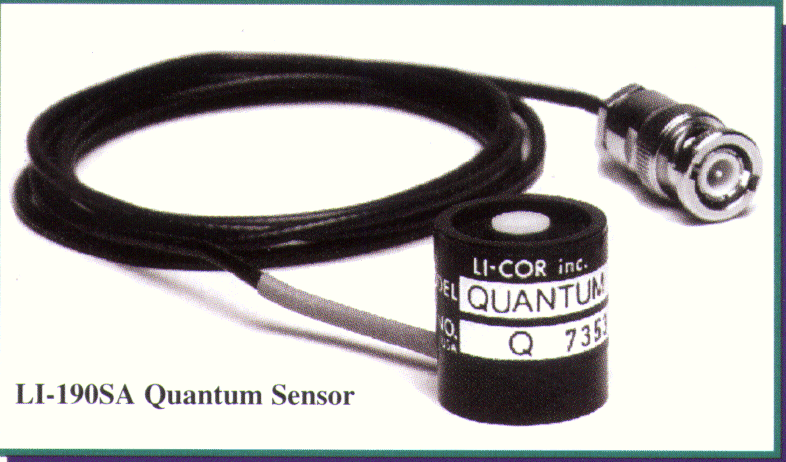

LI-190SA Quantum Sensor Specifications |
|
Absolute Calibration |
±5% traceable to the National institure of Standard and Technology(NIST) |
Sensitivity |
Typical 5 uA per 1000 umol s-1m-2 |
Linearity |
Max. deviation of 1% up to 10,000 umol s-1m-2 |
Stability |
Typically <±2% change over a 1 year period |
Response Time |
10us |
Temp. Dependence |
0.15% per℃ max. |
Cosine Correction |
Cosine Corrected up to 80º angle of incidence |
Azimuth |
<±1% error over 360º at 45ºelevation |
Tilt |
No error induced from orientation |
Operating Temp. |
-40 to 65℃ |
Relative Humidity |
0 to 100% |
Detector |
High stability silicon photovoltaic detector(blue enhanced) |
Sensor Housing |
Weatherproof anodized aluminum case with acrylic diffuser and stainless steel hardware. |
