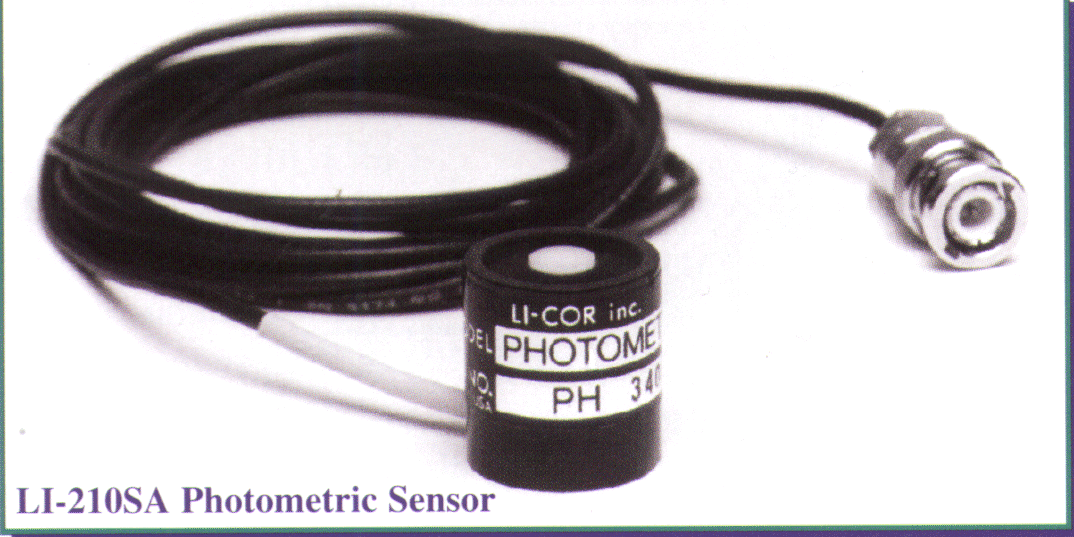

LI-210SA Photometric Sensor Specifications |
|
Absolute Calibration |
±5% traceable to NBS |
Sensitivity |
Typical 30 uA per 100 klux |
Linearity |
Max. deviation of 1% up to 100 klux. |
Stability |
<±2% change over a 1 year period |
Response Time |
10 us |
Temp. Dependence |
±0.15% per℃ max. |
Cosine Correction |
Cosine Corrected up to 80º angle of incidence |
Azimuth |
<±1% error over 360º at 45ºelevation |
Tilt |
No error induced from orientation |
Operating Temp. |
-20 to 65℃ |
Relative Humidity |
0 to 100% |
Detector |
High stability silicon photovoltaic detector(blue enhanced) |
Sensor Housing |
Weatherproof anodized aluminum case with acrylic diffuser and stainless steel hardware. |
Size and Weight |
2.38 dia, x 2,54cm H and 28g |
Cable Length |
10 ft standard |
